Product Description:

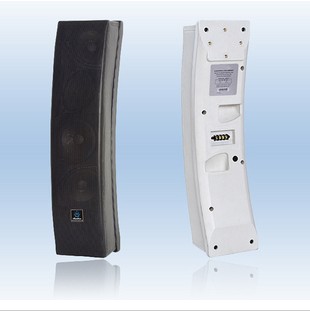

The V-500 small plastic speaker is the speaker of the minor works specifically for fixed installations. Its compact, lightweight box structure and design of considerable beauty and practicality, clear and mellow tone. Focus on appearance and easy installation of the place, such as conference rooms, hotel lobbies, auditoriums, theaters, airports, schools and shopping malls.

V-500 configuration of five 4.5 "(11.4cm) full-range units arranged in array, easier to control the horizontal and vertical coverage of V-500 speaker is ideal for applications in speech occasions and background music, the configuration corresponding to the The subwoofer can be used only for the broadcasting system as a full-frequency enhancement system or used alone.

Features:





-------------------------------------------------- ------------------------------




The human voice is clear and prominent, soft and pleasant sound

Combination of several units in accordance with the requirements of the different perspectives in different environments

Built-in standard HF linear

MF and HF line to release the pure light through sound, so as to achieve high fidelity

The standard configuration can be used in public spaces, meeting rooms and function rooms

1, small size and high power, flexible combination of installation, adaptation and application of different places.

2, in accordance with the requirements of the different perspectives in different environments to combine several units.

3 built-in standard HF linear, the release of a pure and perfectly clear voice, to ensure high fidelity.
Four unique box modular technology to eliminate the harmonic distortion of the low-frequency signal, so that the bass is more pure.
5, ultra-high performance drive unit, can achieve high efficiency, high power input to bring the intrinsic performance of extremely low distortion high SPL, long-term use showed good durability.
6, symmetry slant barrier design, the configuration of speakers arranged in arrays, the point can make sound Speaker unit up and down direction of arrangement of uniform diffusion in the horizontal direction, a good uniformity of the sound field.
Speaker cabinet, using a special vinyl injection molding, light, solid box.
8, and the the Belet Dayton professional power amplifier used in conjunction can maximize the speaker system to play perfect to listen to the limit

Product Specifications:



-------------------------------------------------- ------------------------------

Type V-500 (W / B)
Type the PA system plastic speaker
Frequency Response 100Hz ~ 16KHz (+3 dB)
Components of the MHF 5 x 4.5 "
Rated power is 70W the AES, 150W peak
Recommended Amplifier 150-200W into 4 ohms
Sensitivity (1W/1M). 90dB
Nominal impedance 8Ω
Input voltage -
Size 170x145x600mm
Color black or white
