General
Depth:  9.2 in
Height:  3.8 in
Weight:  6.4 lbs
Width:  12.8 in

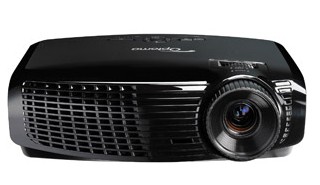

Device Type:  DLP projector
Built-in Devices:  Stereo speakers
Power
Power Device:  Power supply - internal
Voltage Required:  AC 120/230 V ( 50/60 Hz )
Power Consumption Operational:  272 Watt
Miscellaneous
Cables Included:  1 x VGA cable - VGA to VGA - 6 ft ¦ 1 x USB cable
Included Accessories:  Carrying case, lens cover
Compliant Standards:  CE-LVD, ICES-003 Class B, FCC Part 15 B, EMC, R&TTE, RoHS
Expansion / Connectivity
Interfaces:  1 x component video / RGB / SCART - 15 pin HD D-Sub (HD-15) ¦ 1 x serial RS-232 - 9 pin D-Sub (DB-9) ( management ) ¦ 1 x audio line-out - mini-phone stereo 3.5 mm ¦ 3 x audio line-in - mini-phone 3.5 mm ¦ 1 x S-video input - 4 pin mini-DIN ¦ 1 x composite video input - RCA ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x USB ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x network - RJ-45 ( management ) ¦ 1 x HDMI - 19 pin HDMI Type A ¦ 1 x component video / RGB input - 15 pin HD D-Sub (HD-15)
Input Device
Type:  Remote control - external - wireless
Environmental Parameters
Min Operating Temperature:  41 °F
Max Operating Temperature:  104 °F
Humidity Range Operating:  0 - 80% (non-condensing)
Sound Emission:  31 dB
Manufacturer Warranty
Service & Support:  3 years warranty
Service & Support Details:  Limited warranty - 3 years ¦ Limited warranty - lamp - 1 year
Projector / Panel
Image Brightness:  3500 ANSI lumens
Image Contrast Ratio:  3000:1
Image Size:  27.6 in - 303 in
Projection Distance:  4 ft - 39 ft
Resolution:  XGA - XGA (1024 x 768) (native) / 1600 x 1200 (resized)
Native Aspect Ratio:  4:3
Max Sync Rate (V x H):  120 Hz x 91.1 kHz
Lamp Type:  P-VIP 230 Watt
Lamp Life Cycle:  3000 hour(s) / 4000 hour(s) (economic mode)
Projector Lens System
Focus Type:  Manual
Zoom Type:  Manual
Zoom Factor:  1.1x
Keystone Correction Direction:  Vertical
Vertical Keystone Correction:  -40 / +40
Lens Aperture:  F/2.4-2.55
Video Input
Analog Video Format:  PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G
Analog Video Signal:  RGB, S-Video, composite video
Digital Video Standard:  High-Definition Multimedia Interface (HDMI)
Audio Output
Type:  Speaker(s) - integrated
Sound Output Mode:  Stereo
Output Power / Channel:  5 Watt
Video Output
Analog Video Signal:  RGB
