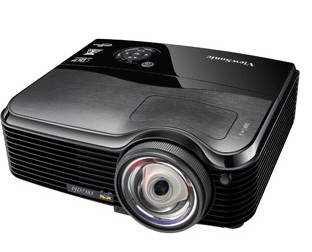

This ViewSonic portable projector is an advanced DLP projector that includes BrilliantColor technology to produce more vibrant colors, while the high brightness and contrast ratio make this short-throw projector shine in virtually any lighting situation. With its ultra-short-throw lens, the ViewSonic portable projector can project an 81-inch image from just three feet. The PJD7383 delivers 3000 lumens, 3000:1 dynamic contrast ratio with a 1024 x 768 XGA native resolution, and has a wide range of input options including dual RGB ports, Ethernet RJ45, USB and wi-fi (with optional adapter). The ViewSonic portable projector can be displayed and managed over the network through its advanced management software. The ViewSonic PJD7383 makes an ideal projector for both businesses and schools.
ViewSonic PJD7383 DLP Projector:
- Brilliant presentations in almost any lighting condition with 3000 lumens
- Latest BrilliantColor technology delivers stunning all digital clarity
- Short-throw lens for large, stunning images in small places
- Wireless capability with the optional Wi-Fi adapter (sold separately)
- Eco mode extends the lamp life up to 6,000 hours and reduces noise output
- Project your pictures or images directly from a USB flash drive without a PC
- Advanced management software lets you project up to 4 PCs at the same time
- Project your presentations through any USB connection without the hassle of running a bulky VGA cable
- Network control through an RJ45 cable
General
Depth: 10 in
Height: 5 in
Weight: 7.7 lbs
Width: 11.4 in
Device Type: DLP projector
Power
Power Device: Power supply
Voltage Required: AC 120/230 V ( 50/60 Hz )
Power Consumption Operational: 329 Watt
Miscellaneous
Cables Included: 1 x VGA cable
Compliant Standards: CE, UL, TUV GS, C-Tick, cUL, NOM, SASO, CB, PSB, EK, FCC, RoHS, WEEE, GOST-R
Expansion / Connectivity
Interfaces: 2 x VGA input - 15 pin HD D-Sub (HD-15) ¦ 1 x VGA output - 15 pin HD D-Sub (HD-15) ¦ 1 x composite video input - RCA ¦ 1 x S-video input - 4 pin mini-DIN ¦ 1 x audio line-in - mini-phone 3.5 mm ¦ 1 x audio line-out - mini-phone 3.5 mm ¦ 1 x remote control - 9 pin mini-DIN ¦ 1 x remote control - RJ-45 ¦ 1 x microphone input - mini-phone 3.5 mm ¦ 1 x audio line-in - RCA
Input Device
Type: Remote control
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90%
Sound Emission: 32 dB
Manufacturer Warranty
Service & Support: 3 years warranty
Service & Support Details: Limited warranty - parts - 3 years ¦ Limited warranty - lamp - 1 year
Projector / Panel
Image Brightness: 3000 ANSI lumens
Image Contrast Ratio: 2000:1 / 3000:1 (dynamic)
Image Size: 2.5 ft - 25 ft
Projection Distance: 1.2 ft - 12 ft
Resolution: XGA - XGA (1024 x 768)
Native Aspect Ratio: 4:3
Max Sync Rate (V x H): 120 Hz x 100 kHz
Lamp Type: 210 Watt
Lamp Life Cycle: 4000 hour(s) / 6000 hour(s) (economic mode)
Projector Lens System
Focus Type: Manual
Keystone Correction Direction: Vertical
Vertical Keystone Correction: -40 / +40
Video Input
Analog Video Format: NTSC, SECAM, PAL, PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, PAL 60, NTSC 3.58, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G, M-NTSC
Analog Video Signal: RGB, S-Video, composite video, component video
Audio Output
Type: Speaker(s)
Sound Output Mode: Mono
Output Power / Channel: 10 Watt
Video Output
Analog Video Signal: RGB
